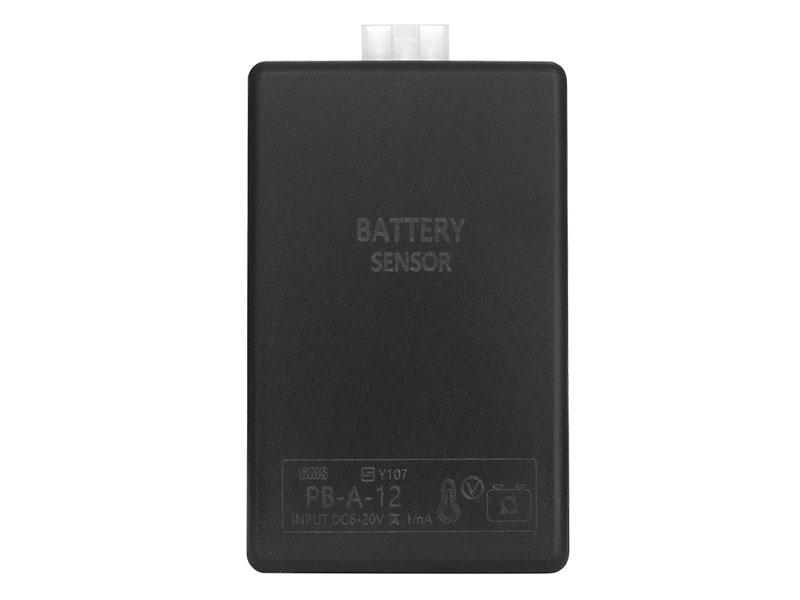

PB-A (Battery Sensor) module

The PB-A battery sensor module is designed specifically for single battery monitoring. PB-A battery sensor advanced technology provides the most comprehensive stationary battery health analysis in the industry.

• Continuous 24/7 online monitoring

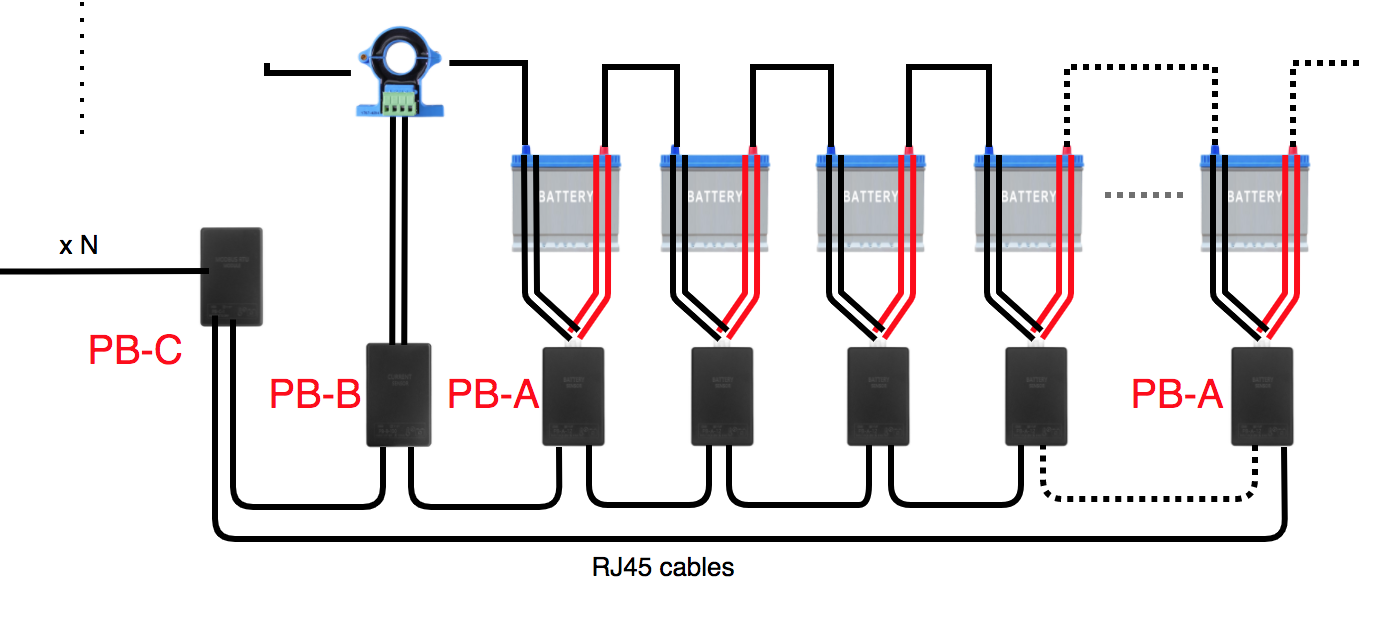

• One battery sensor per battery to monitor internal resistance, voltage and temperature
• Software is available to retrieve data from PB-A module
• Serial port with optical isolation, meets Modbus specification
• User-friendly installation

FEATURES

• Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis

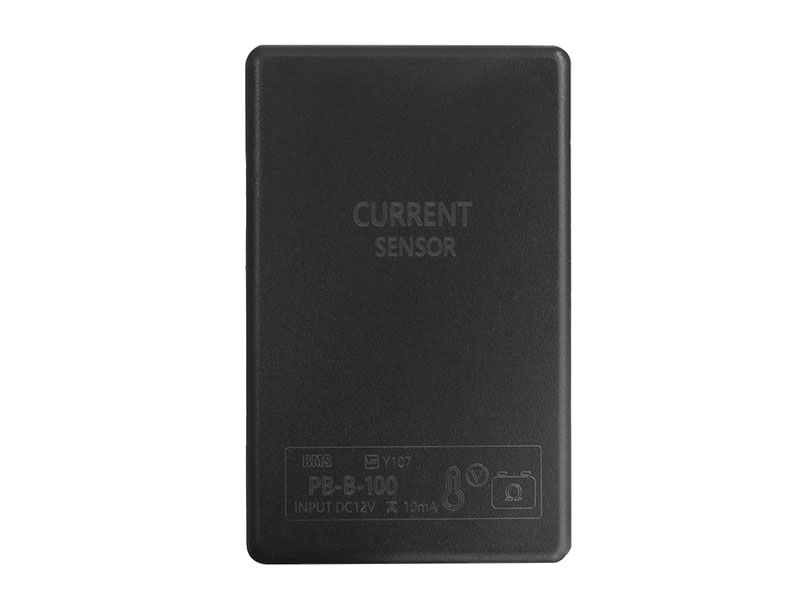

• String current and ambient temperature monitoring (requires PB-B module)

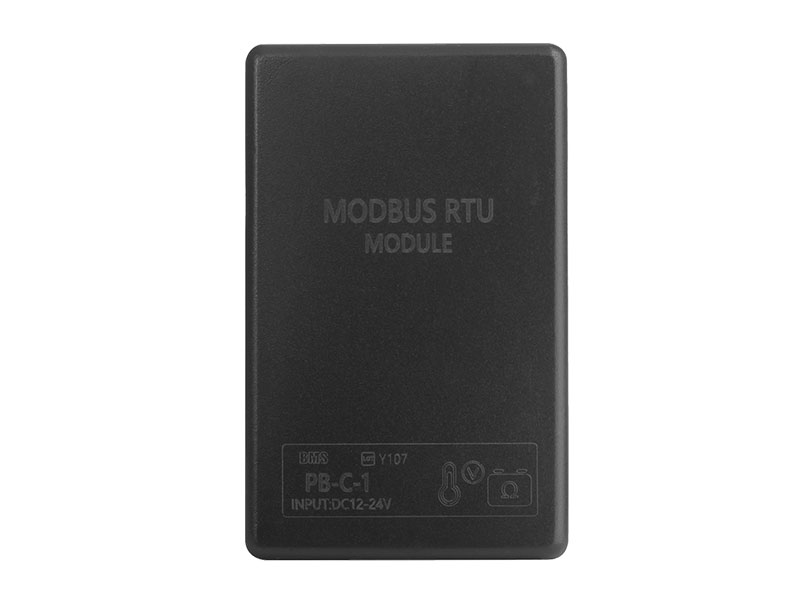

• Voltage isolation MODBUS RTU (requires PB-C module)
• All operating parameters can be set via the serial bus
• Signal lights indicate when alarm is raised, which can also be read via the serial bus
• Store historical data
• WEB server is available for management of multiple strings, real-time querying and historical data

SPECIFICATIONS

Model	PB-A-12	PB-A-2
Usage	12v,6v batteries	2v batteries
Measurement Range
Voltage	4V-20V(0.1%+10mV)	0.8V-3.3V(0.1%+1mV)
internal resistance	0-100mΩ(2%+0.05mΩ)	0-20mΩ(2%+0.01mΩ)
Battery temperature	-5°C ~ +99°C
Average operating current	1mA	10mA
installation	Mount on battery or DIN rail
Communications interfaces	RJ45 connect,meets Modbus supports 100 devices on each bus
Serial baudrate	19200,9600,4800,2400,1200
Isolation voltage	Optoelectronic isolator,5000Vrms
Product size	86mm*50mm26mm
Protection	Battery circuit is fused Reverse connection protection
Operating temperature	-5℃-50℃, 5%-90%RH
Storage temperature	-10℃-85℃, 5%-90%RH
